Dry cleaning drum TRH in use for processing limestone in an industrial hall | © Allgaier Process Technology 2022
How we inspire our clients
The patented dry cleaning drum System Mozer® TRH replaces the use of rock washing equipment in the preparation of limestone

The patented dry cleaning drum System Mozer® TRH replaces the use of rock washing equipment in the preparation of limestone

The customer

  • Internationally operating customers in the stone and earth industries.

The challenge

  • During the extraction of limestone, a so-called pre-screening debris often accumulates, which consists of up to 90 percent good limestone, but is frequently very heavily contaminated with clay or loam.
  • Without appropriate cleaning, the limestone can only be sold as an inferior product.
  • To clean the impurities on the limestone, rock washing plants have often been used to date, followed by a further process to dry it.
  • The use of rock washing plants is associated with considerable investment and energy requirements and, moreover, cannot be operated in a technically and economically viable manner during severe frost or in areas where water is scarce.

The solution

  • The patented dry-cleaning drum System Mozer® TRH combines the process steps of drying and cleaning and thus replaces the use of rock washing plants.
  • After pre-drying the rock in the first section of the dryer, clay and loam components adhering to the limestone are removed in the second section by a targeted combination of residence time and mechanical stress.

The result

  • As a result, the TRH dry cleaning drum is characterized by very good cleaning results.
  • The process is also convincing due to its particularly efficient mode of operation and moderate investment and operating costs.
  • Allgaier Process Technology also offers solutions for the downstream process steps of screening and sorting with the MSizer and MSort from Mogensen.
Limestone before and after drying and cleaning | © Allgaier Process Technology 2022

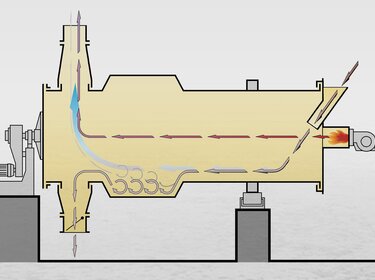

Dry cleaning drum TRH Graphic and mode of operation | © Allgaier Process Technology 2022
